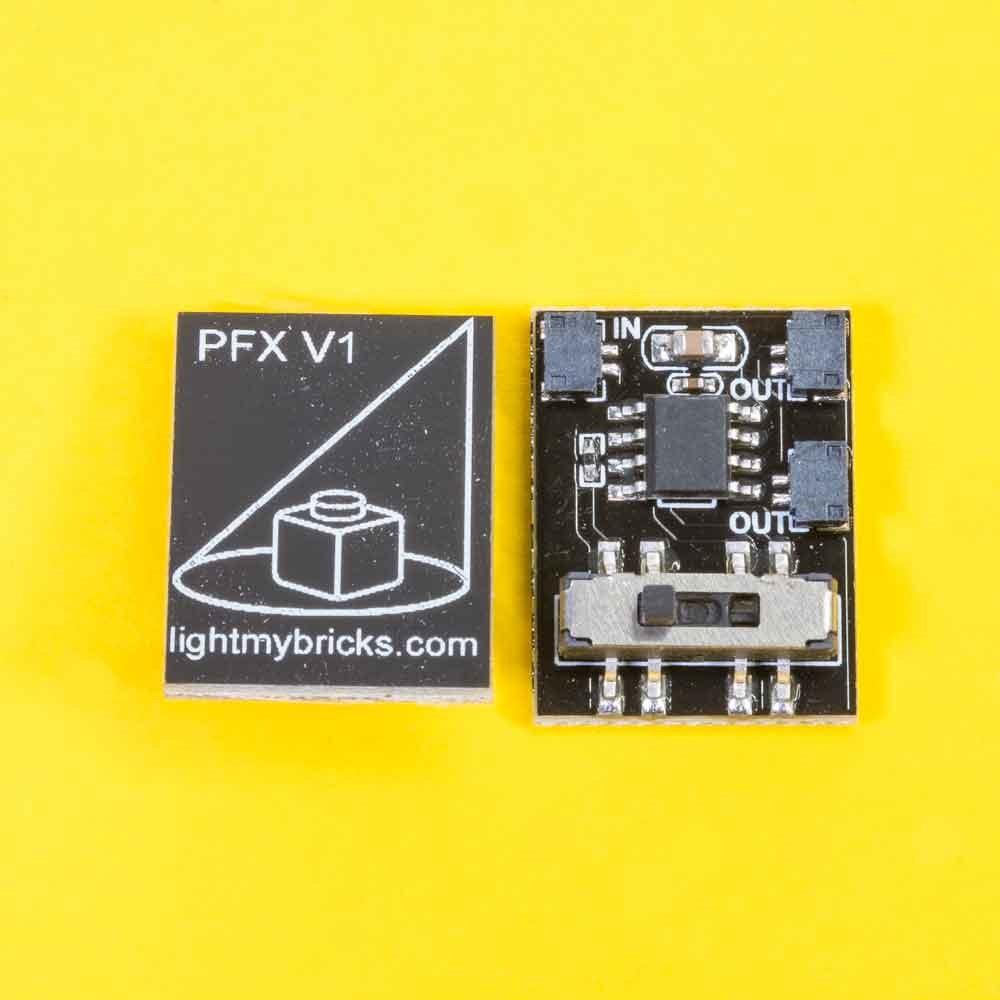

Pulse Effects Board

£12.99 inc VAT
Change

Description

The Pulse Effects Board will allow you to select three different pulsing patterns, ranging from slow, medium and fast - giving your lights the ability to create range of energetic effects!

Connect your desired components directly via the two outputs, each channel controls a different rate of effect. Multiply and extend your circuit with our expansion boards.

Physical dimensions are 20mm x 15mm. Perfectly sized to be concealed within any LEGO set

Please note: This effects board can only be used for static lights. It can NOT control our Flashing or Rotating Bit Lights.

Powering Options: If you wish to use the 2 output ports for 2-6 bit lights then the Flat or Round Battery Pack will be sufficient. If you wish to combine this effect board with more lights, expansion boards, and connecting cables you will require more power from an AA Battery Pack or USB Power Cable.

Light My Bricks LEGO Lighting Components provide an easy DIY way for LEGO fans to customise their models using LED lights. With a wide variety of colours, lighting options and effects, anyone can light up their LEGO set.

All our components are plug and play - no electronics knowledge needed!

User Guide

Our User Guide is a great resource that outlines proper component handling and installation with LEGO models.

Delivery & returns

Orders are dispatched from our United Kingdom Warehouse. Our products are shipped next business day from the time of purchase or same day* if the orders are placed before 12PM (GMT).

*Same day shipping cannot be guaranteed during Peak Sale Periods.

Light My Bricks uses Royal Mail for shipping throughout the United Kingdom. To view our shipping rates, information regarding shipping and tax/duties, visit our shipping page.

For product returns, please visit our returns request page for details.

Warranty & disclaimers

Please Note: This set is an LED lighting kit only. All LEGO® sets featured in images and videos are sold separately. LEGO® is a trademark of the LEGO Group of Companies which does not sponsor, authorise, or endorse this site.

Light My Bricks products contain small parts and batteries that may represent a choking hazard for small children. Light My Bricks products are not intended to be used by children under 3 years old. Light My Bricks recommends that all children who use our products do so under adult supervision.

Light My Bricks offers a two-year warranty in accordance with Australian Consumer laws. If your product is faulty, you can lodge a replacement via our Missing/Faulty Component Request page.
